RadioMaster Ranger Micro ELRS Module RDM-HP0157-0034 Review

RadioMaster Ranger Micro ELRS: Tiny Module Huge Range

Unleash your inner wanderer with this vintage-inspired treasure a one-of-a-kind find radiating effortless cool and whispering tales of sun-drenched adventures It’s not just an item it’s a vibe a conversation starter a little piece of bohemian magic waiting to elevate your everyday style

$39.98 $79.95

num:

description

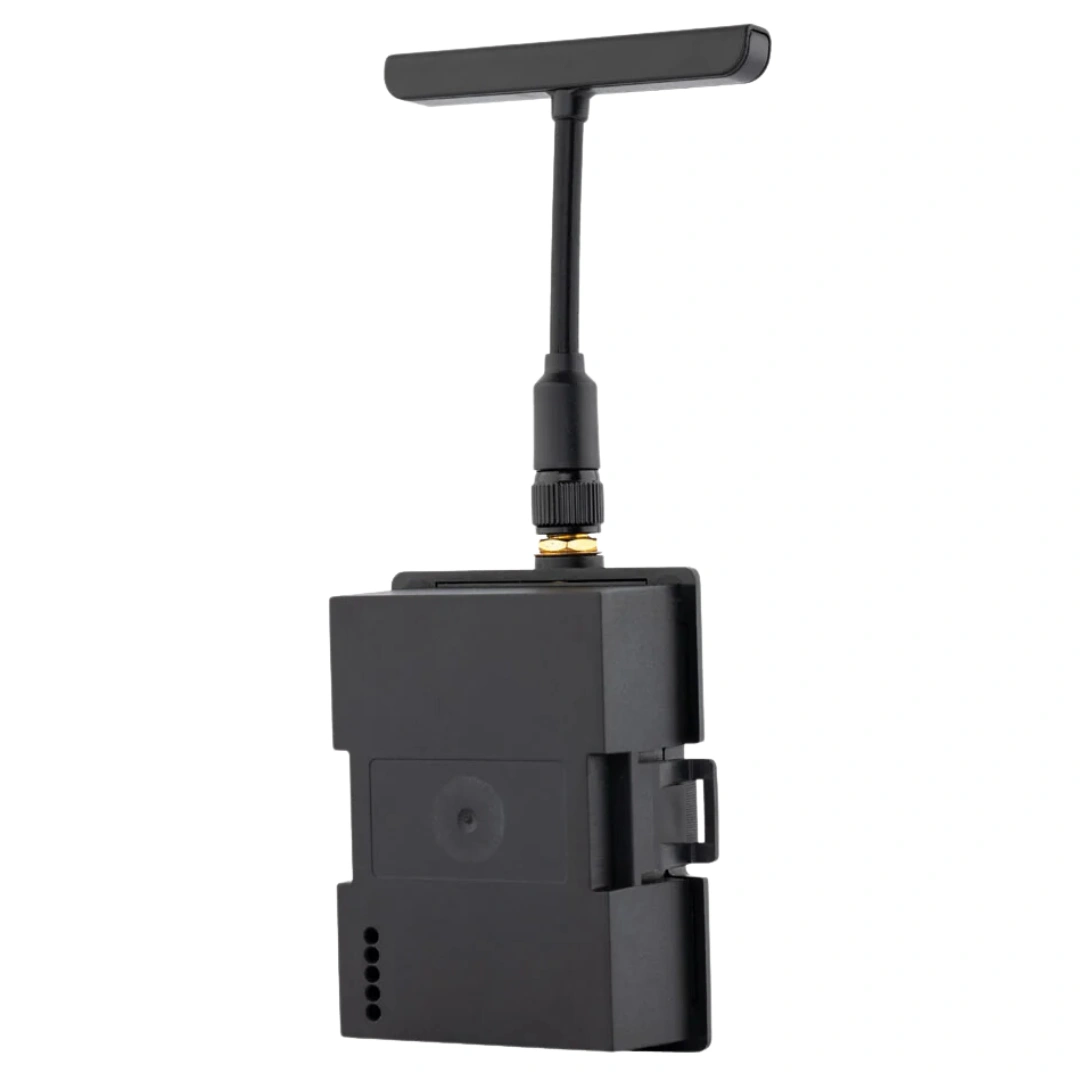

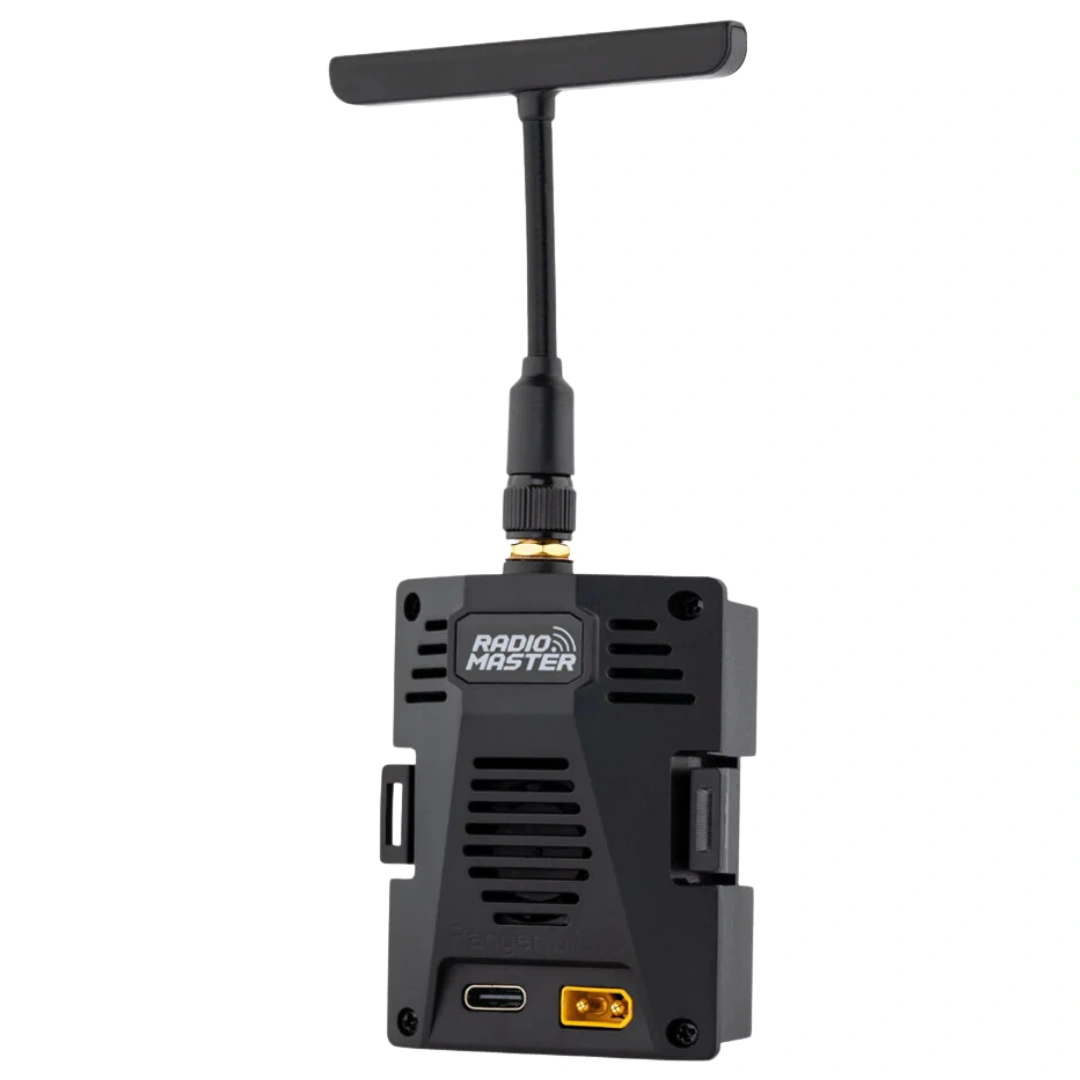

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Features

High-efficiency cooling system
Up to 1Watt Power output
Wifi and Bluetooth support
Packet rates up to F-1000Hz
T-antenna included
With the Micro connector, support TX16S MKII and TX12 MKII radio

Specifications

Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

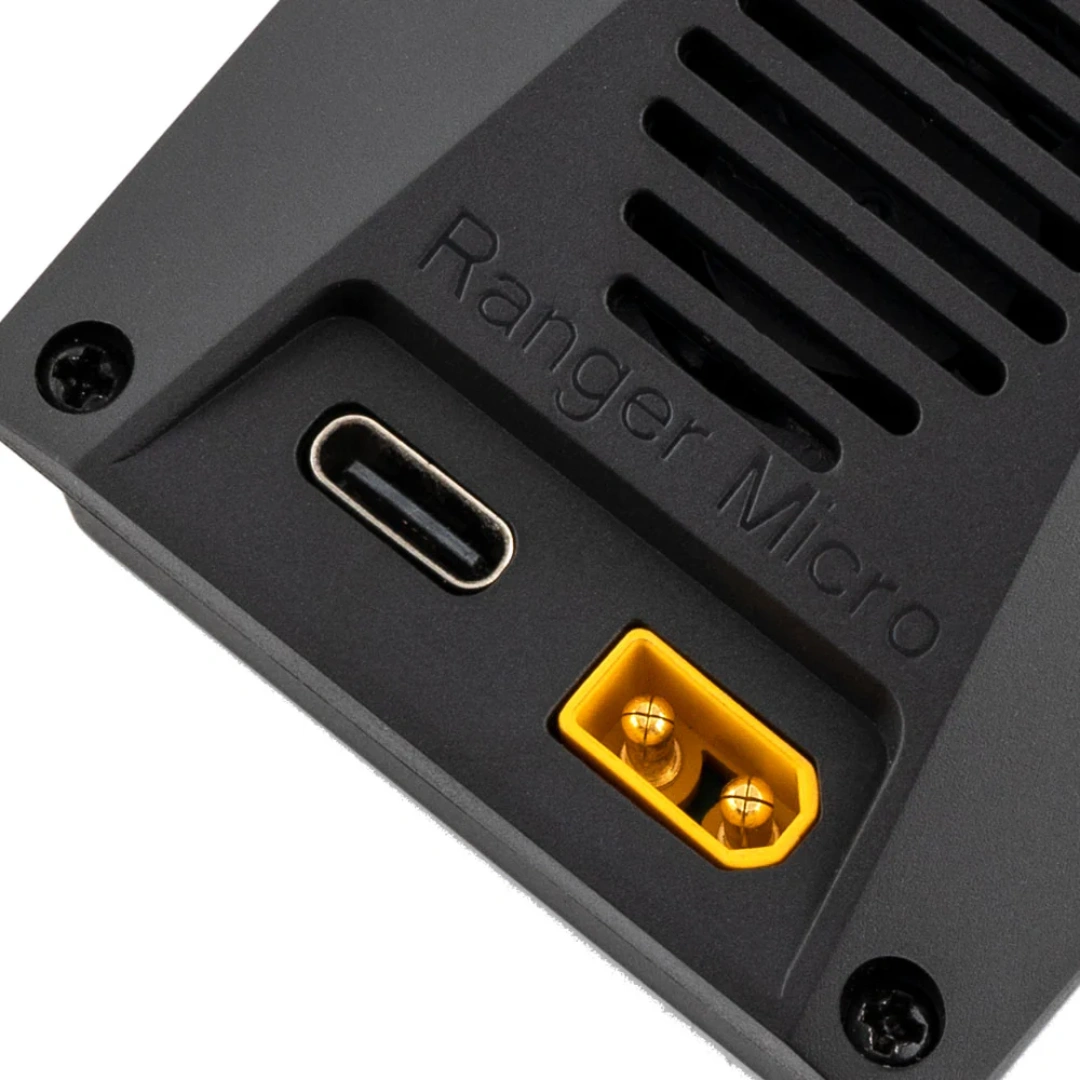

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
