RC4WD 26kg Yellow 1/14 Hydraulic Excavator RTR

RC 360L Hydraulic Excavator - 1/14 Scale Metal Beast (Yellow) RTR

Unleash your inner wanderer with this captivating piece – a whisper of adventure, a splash of unexpected color, and a touch of timeless charm. Crafted for the soul that craves a little magic, it's more than just an object; it's a story waiting to be told. Own a moment of delightful surprise.

$2944.50 $5889.00

num:

description

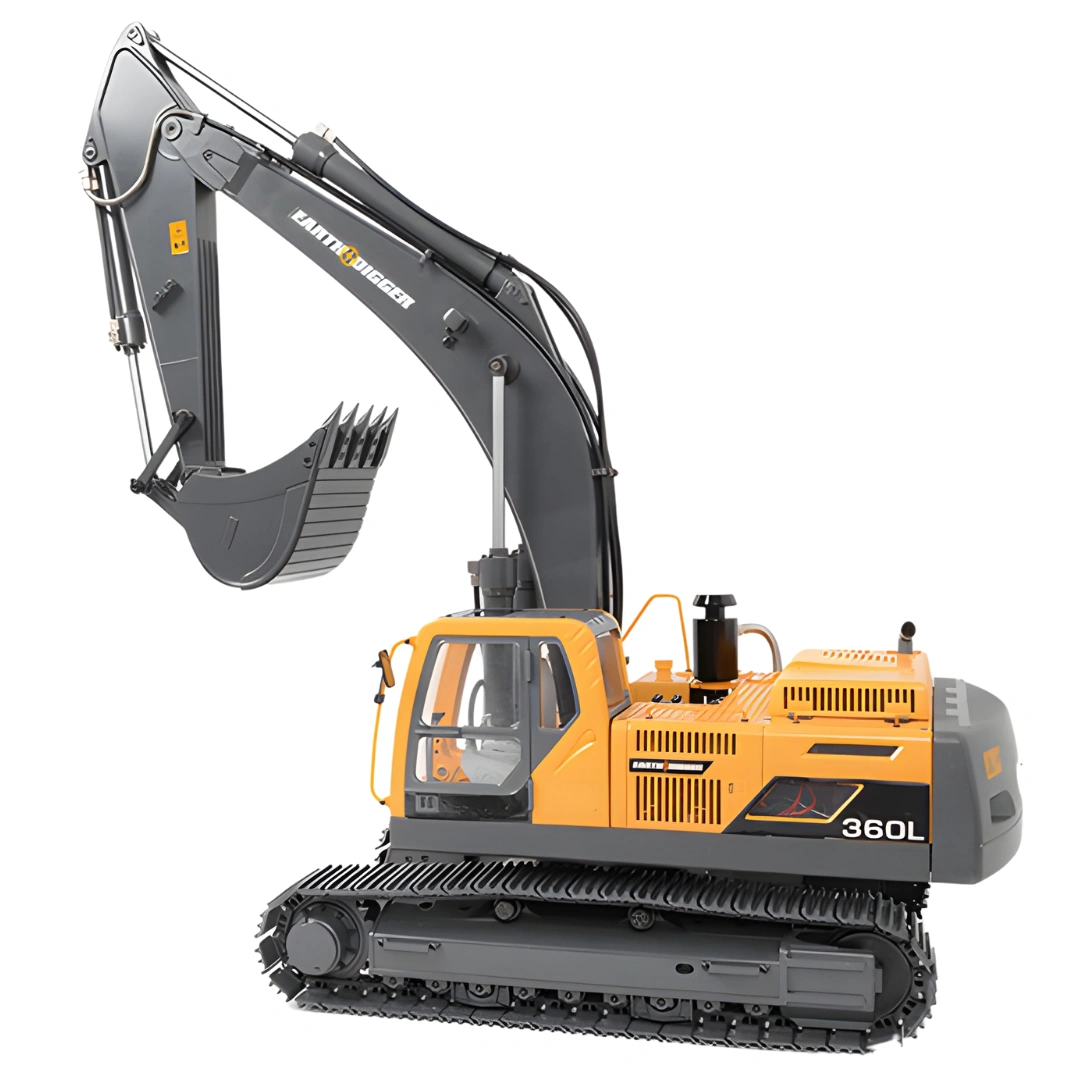

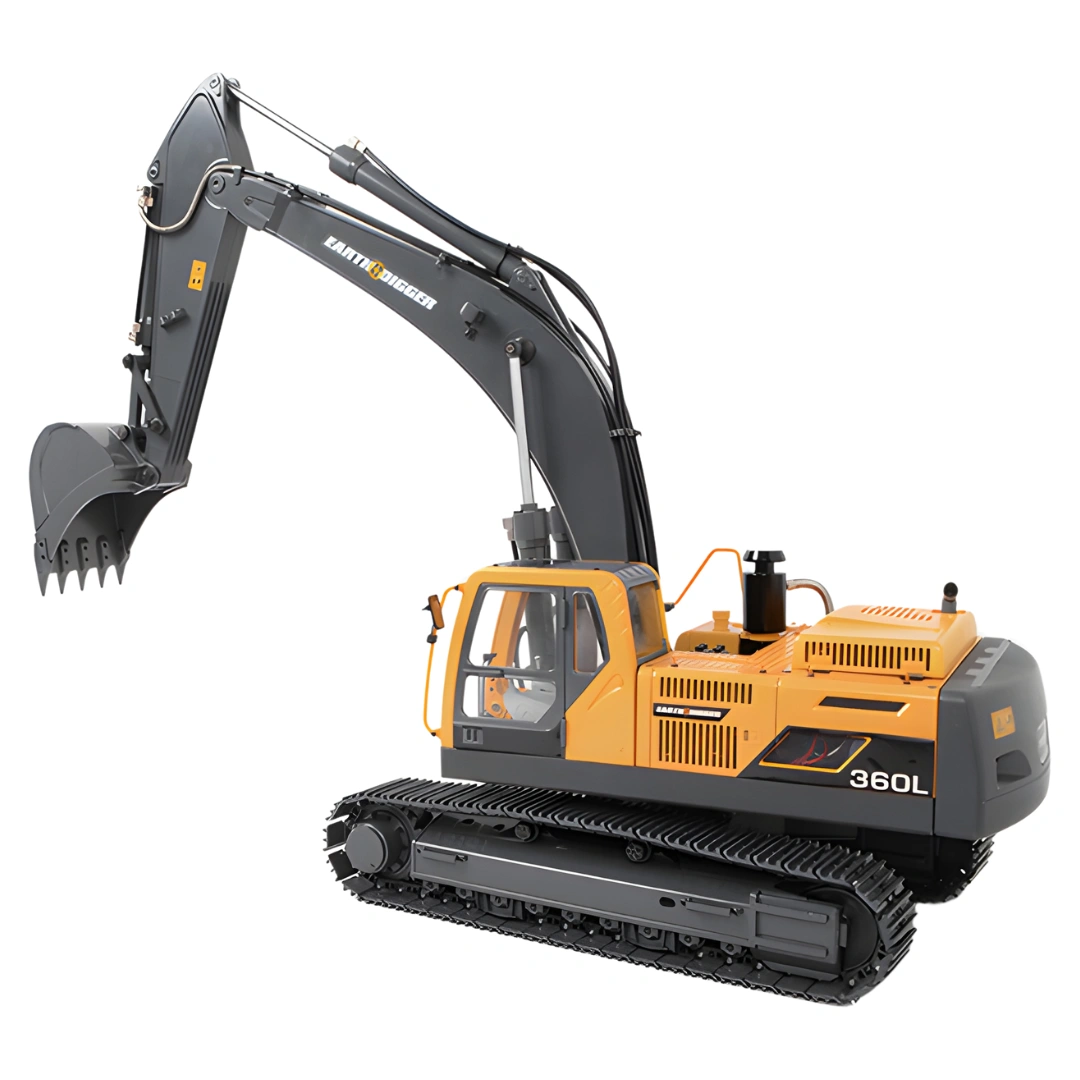

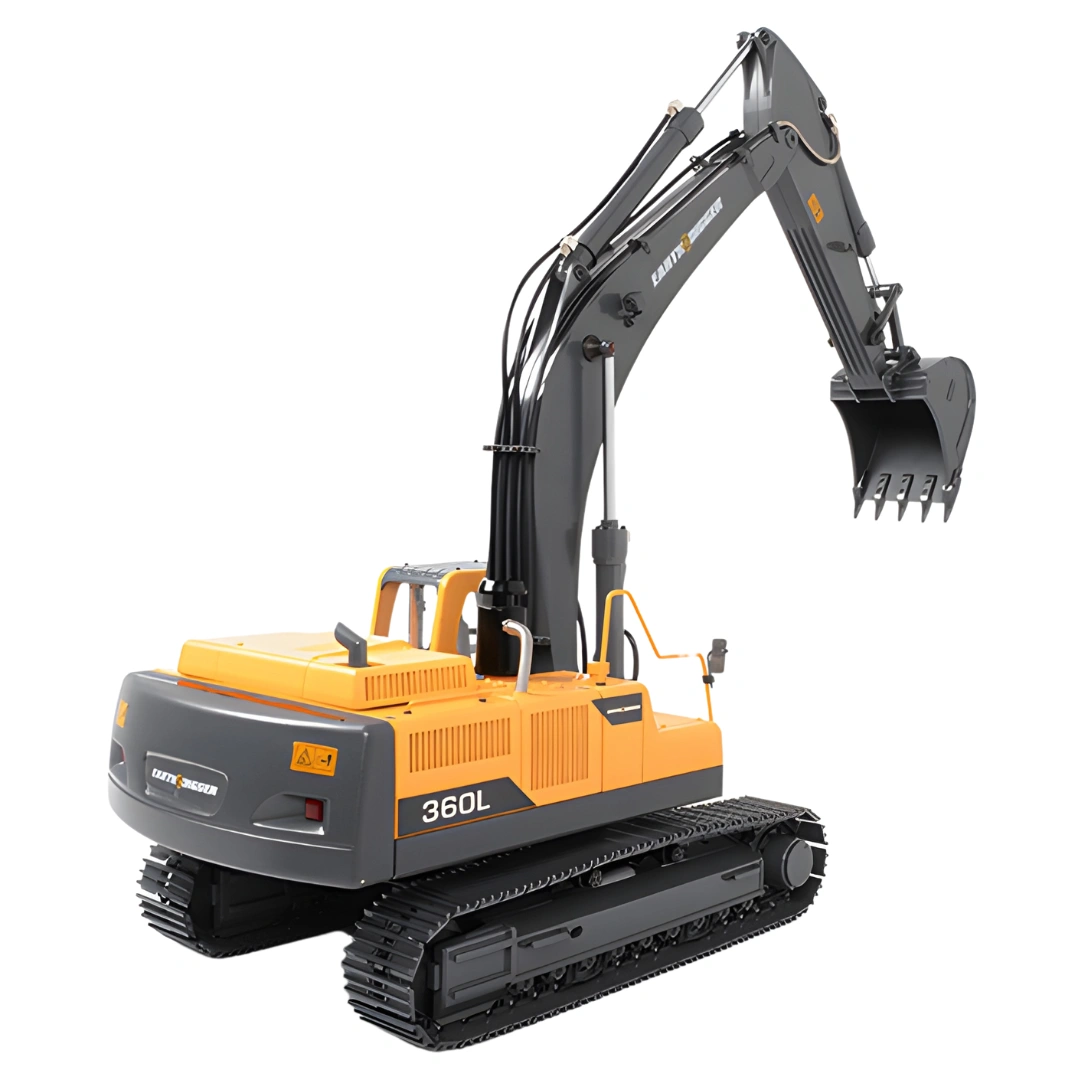

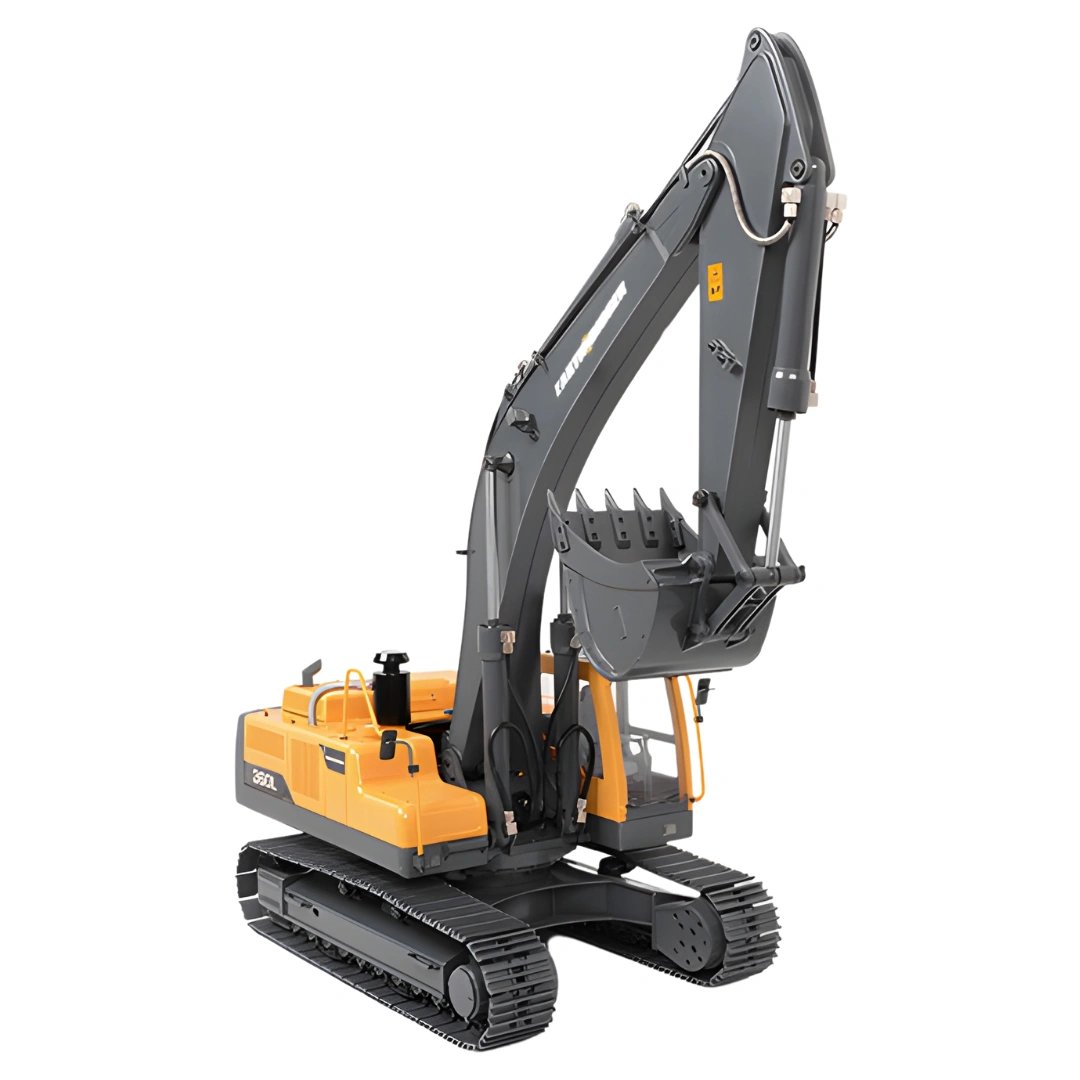

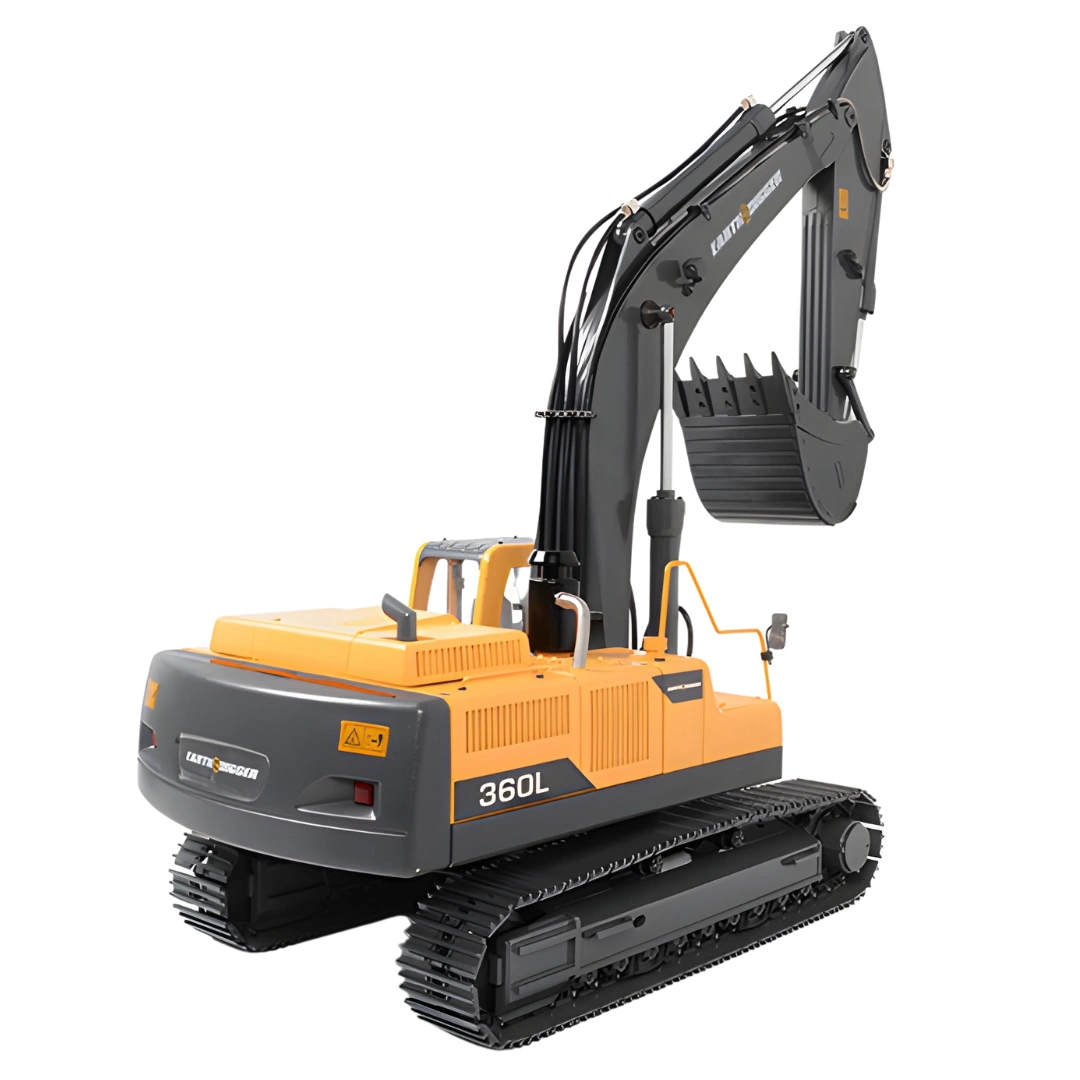

The 1/14 Scale Earth Digger 360L Hydraulic Excavator 360L is even more powerful than its predecessor! Built for those that want reliability, unmatched looks and brute strength for getting that project done. Created with CNC machined metal parts, it's fully assembled and ready to dig! Be ready for the massive power delivered through the high output brushless system. Let's get digging!

Specifications

Alloy Zinc and Alloy Aluminum Casting (except Hydraulic Pump)
Custom 8 Channel 2.4Ghz Radio
Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)
Optimized Steel Hydraulic System
Scale Driving Figure Ready (Not included)

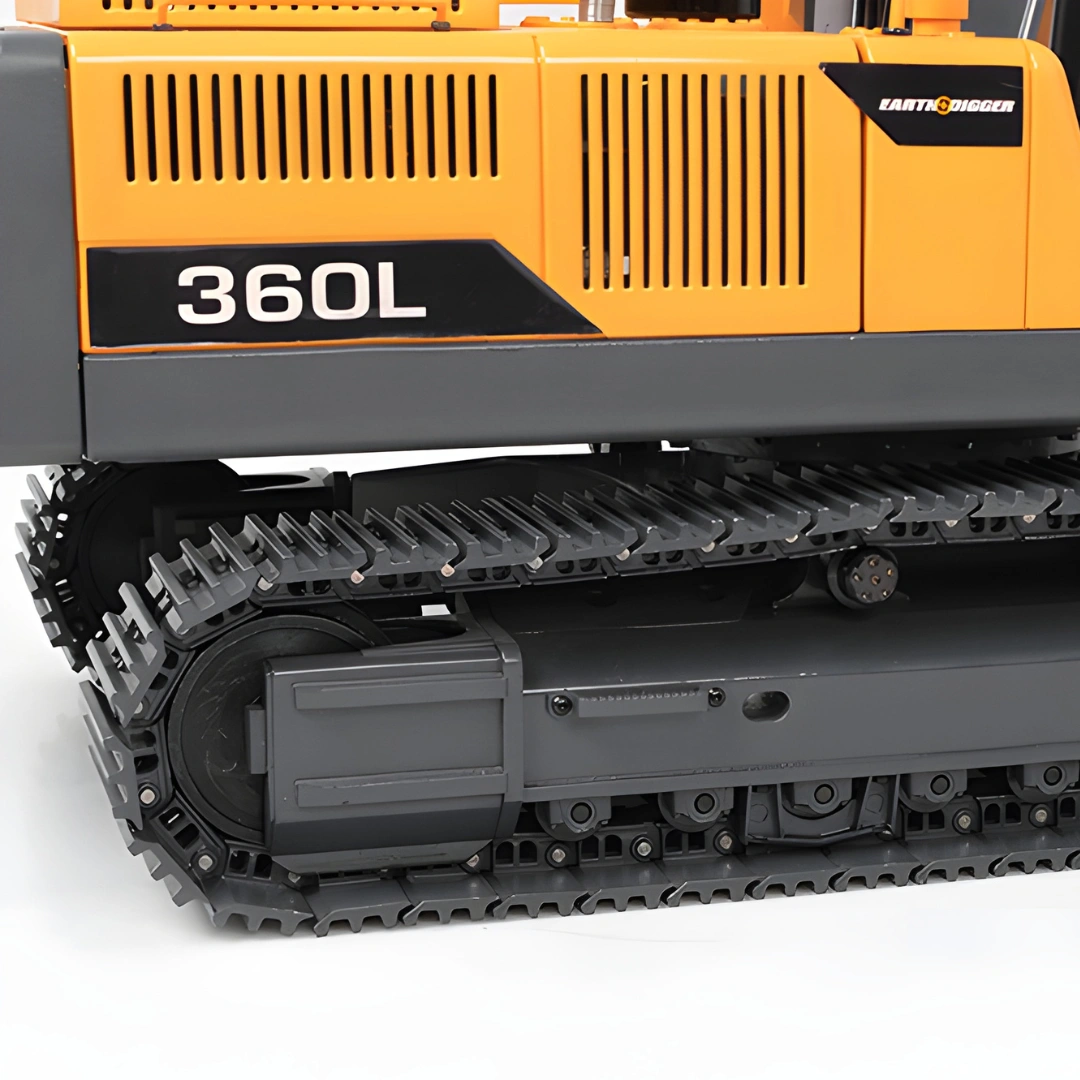

Alloy Zinc Molded Tracks (50mm Width)
Efficient Undercarriage
Reliable Hydraulic Valve and Adjustable Pump

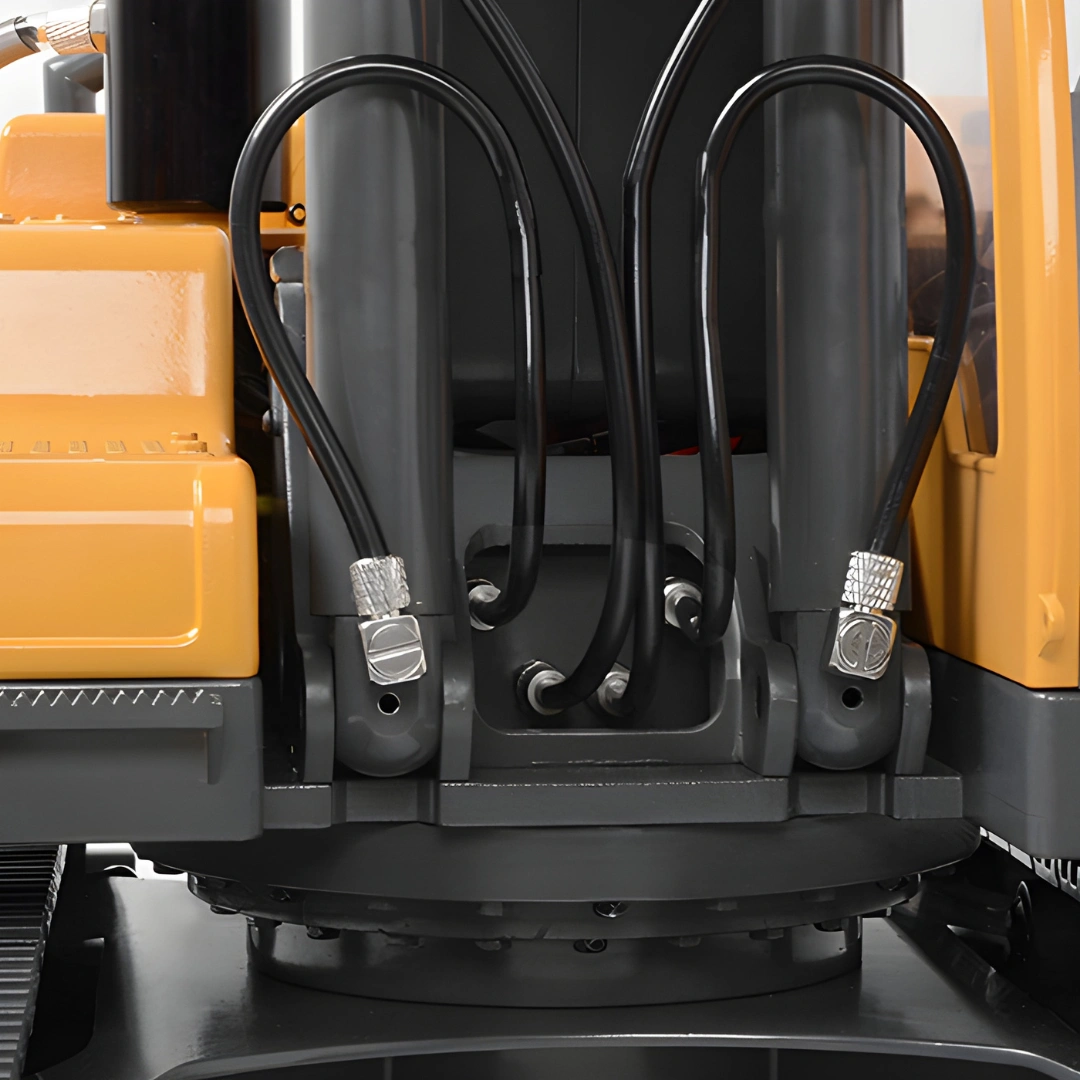

Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
Undercarriage May Rotate 360 Degrees (Endless)
Powder-coated in Yellow and Grey
Massive Brushless System (Including driving and turning)
Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC
270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm

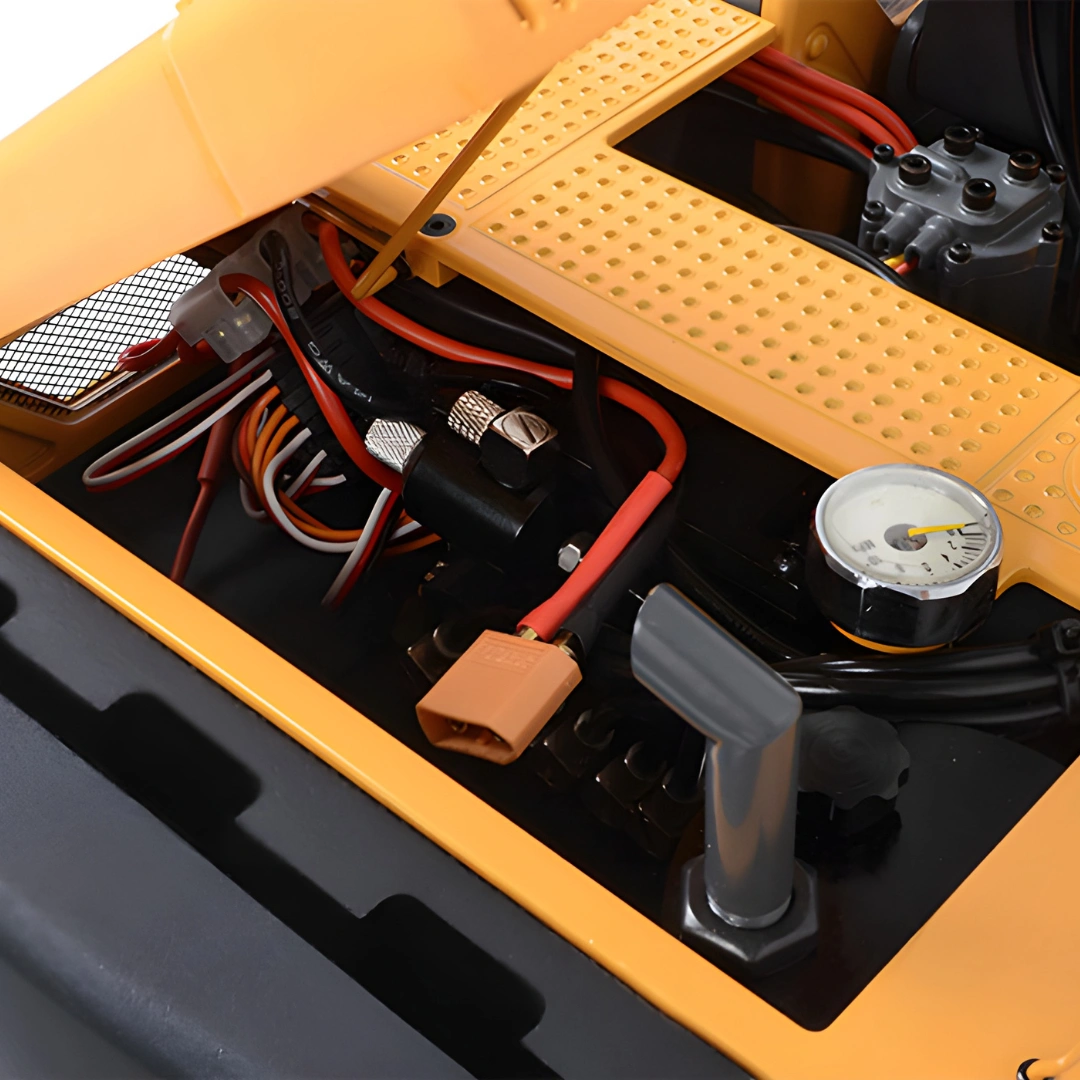

XT60 Power Plug Female
Run Time: 20 Minutes based on 4200mAh, 11.1V Battery

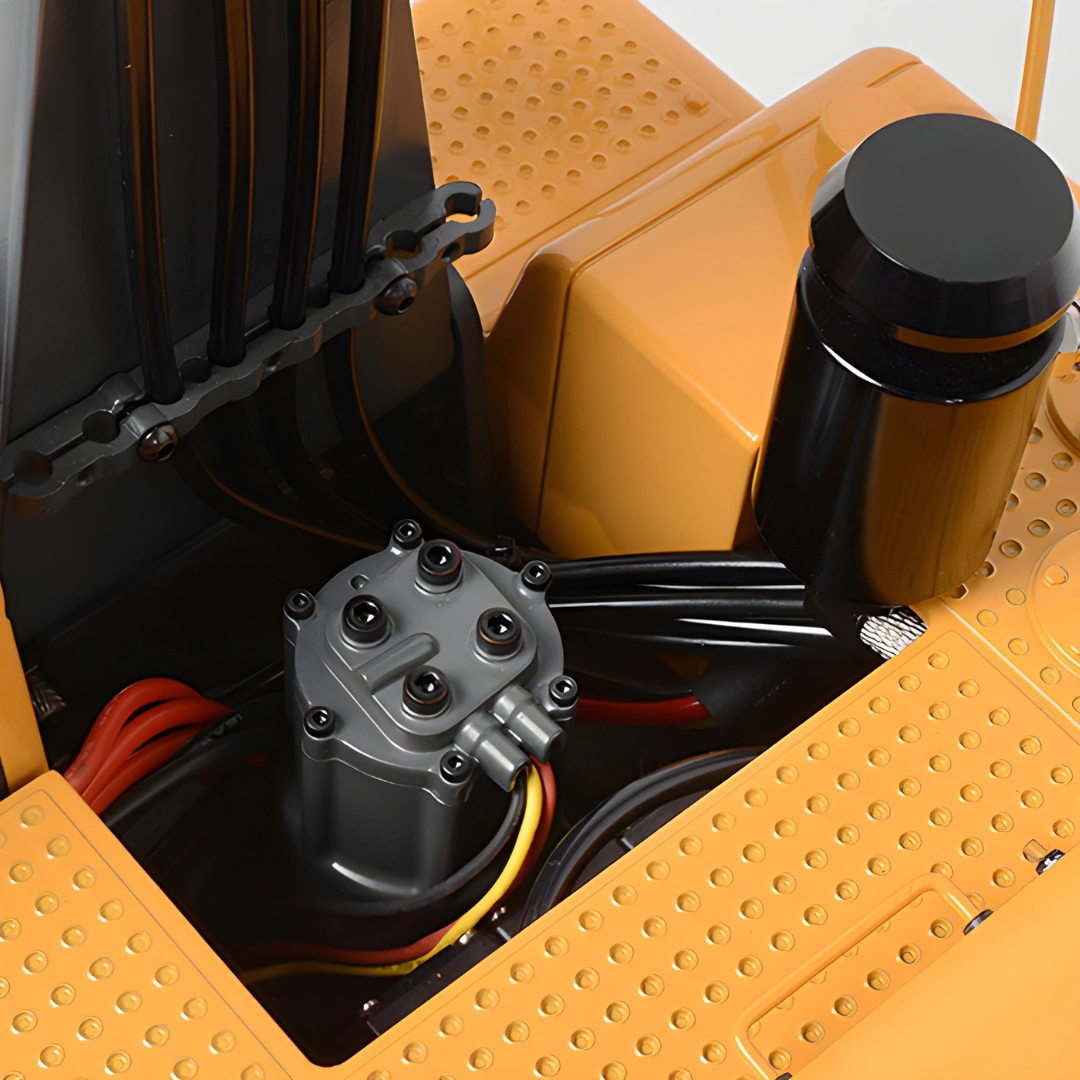

Steel Machined Oil Pump (60mm x 60mm x 93mm)
Digging Force: 15kg / 33lbs
Max Lifting Force: 70Kg / 154lbs
Driving Speed: 360 Meter per hour
Lipo Cutoff
Scale: 1:14
Length: 823mm / 32.4in
Width: 234mm / 9.21in
Height: 260mm / 10.2in
Operating Oil Pressure: 2.5Mpa

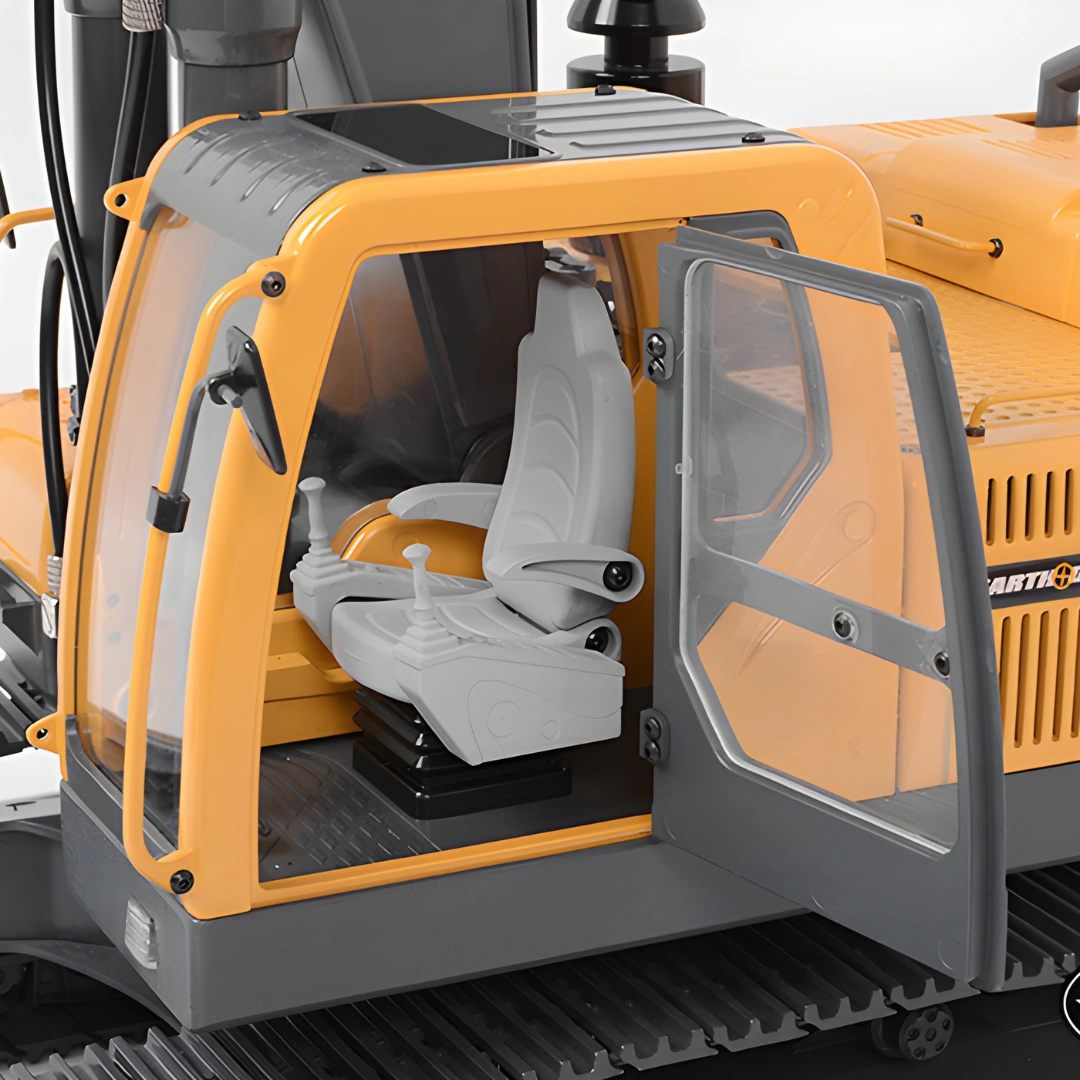

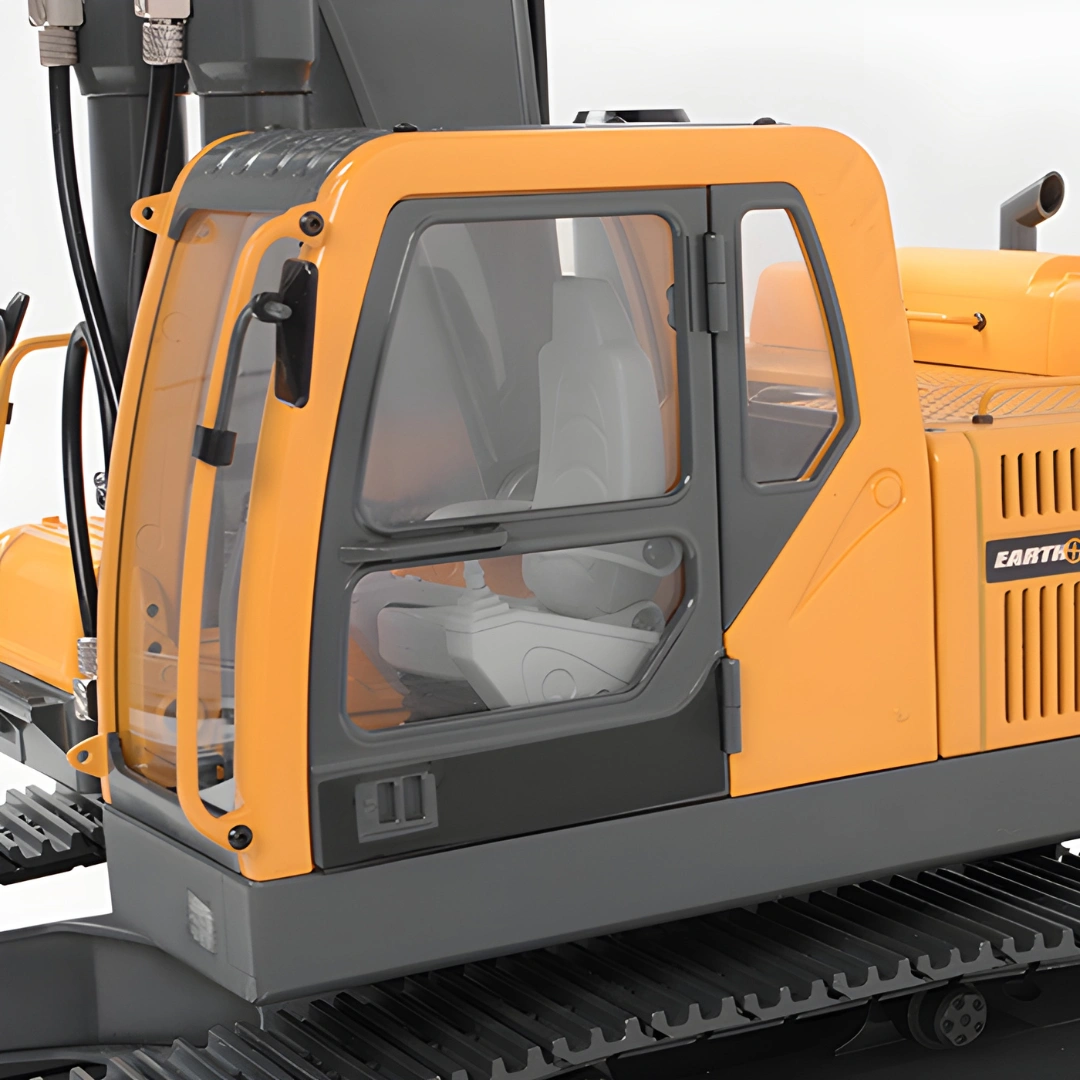

Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 4.21in / 107mm
Deadweight: 26Kg / 57lbs

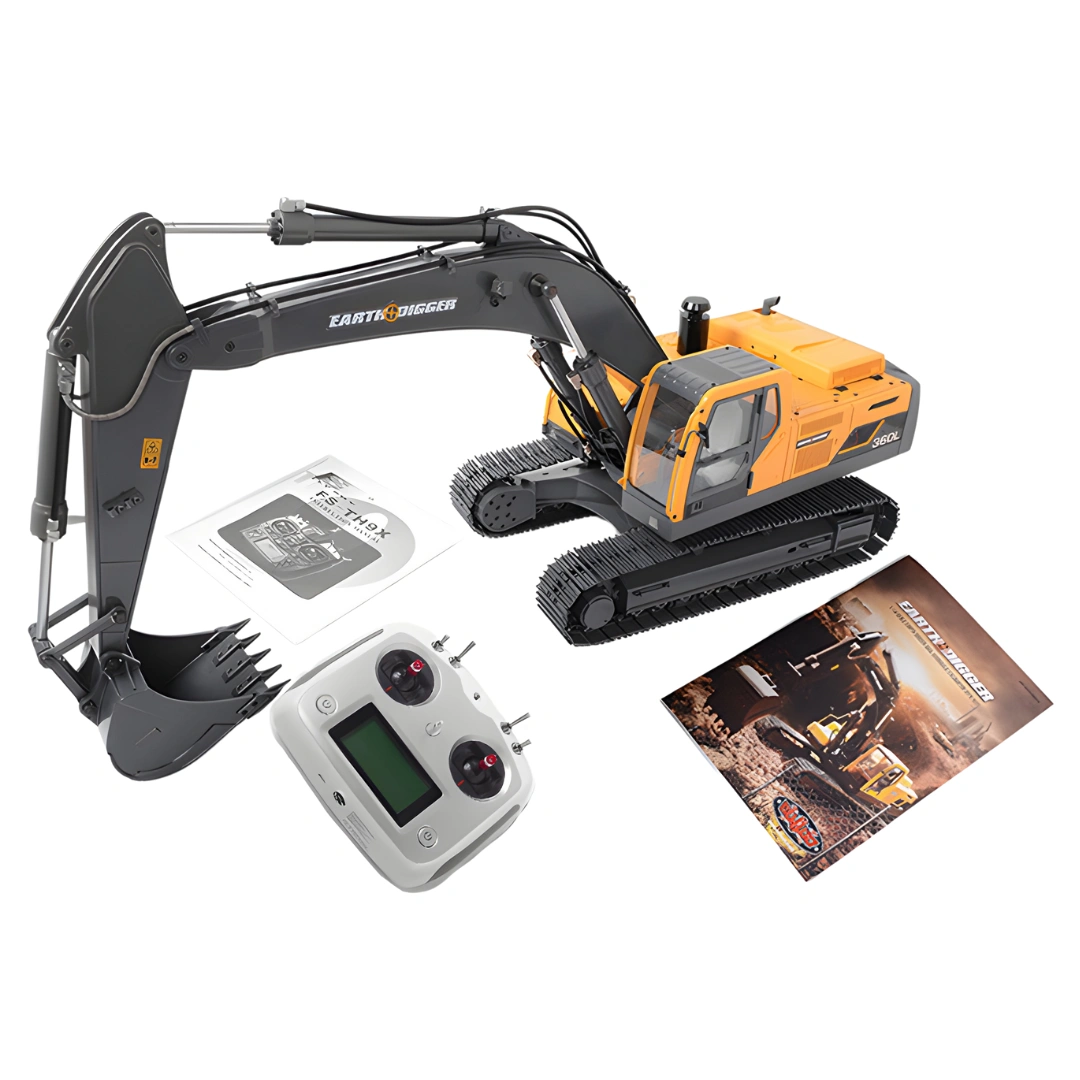

Includes

1x 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow)
FlySky i6S Transmitter

Requires

Supply Voltage: 12V, XT60 Connector, We recommend=3S, 25C LiPo Battery.
Compatible Battery Charger
8x AA Batteries for Radio (Z-S1718)
Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Notes

Battery Size should be within 160x51x73MM(LxWxH).
Must turn on the transmitter before starting the ESC.
ESC Supports XT60 Connector
This unit doesn't have a low voltage cut off. You will want to purchase a LiPo Battery Low Voltage Alarm to protect your battery. This is a common item in RC and should be available at most major online hobby shops.
While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

30 Days Limited Warranty

This product is made for heavy duty usage. Since there are no plastic parts, it's designed to last. however, hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We can supply all spare parts. Pump, hoses and electronics system is not covered under warranty, but we do guarantee full functionality at arrival. Each unit is full tested twice before we ship.
Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
This Excavator is shipped without oil. You will have to fill the tank yourself (half tank), by using a funnel or tube (not included).
