Product Detail

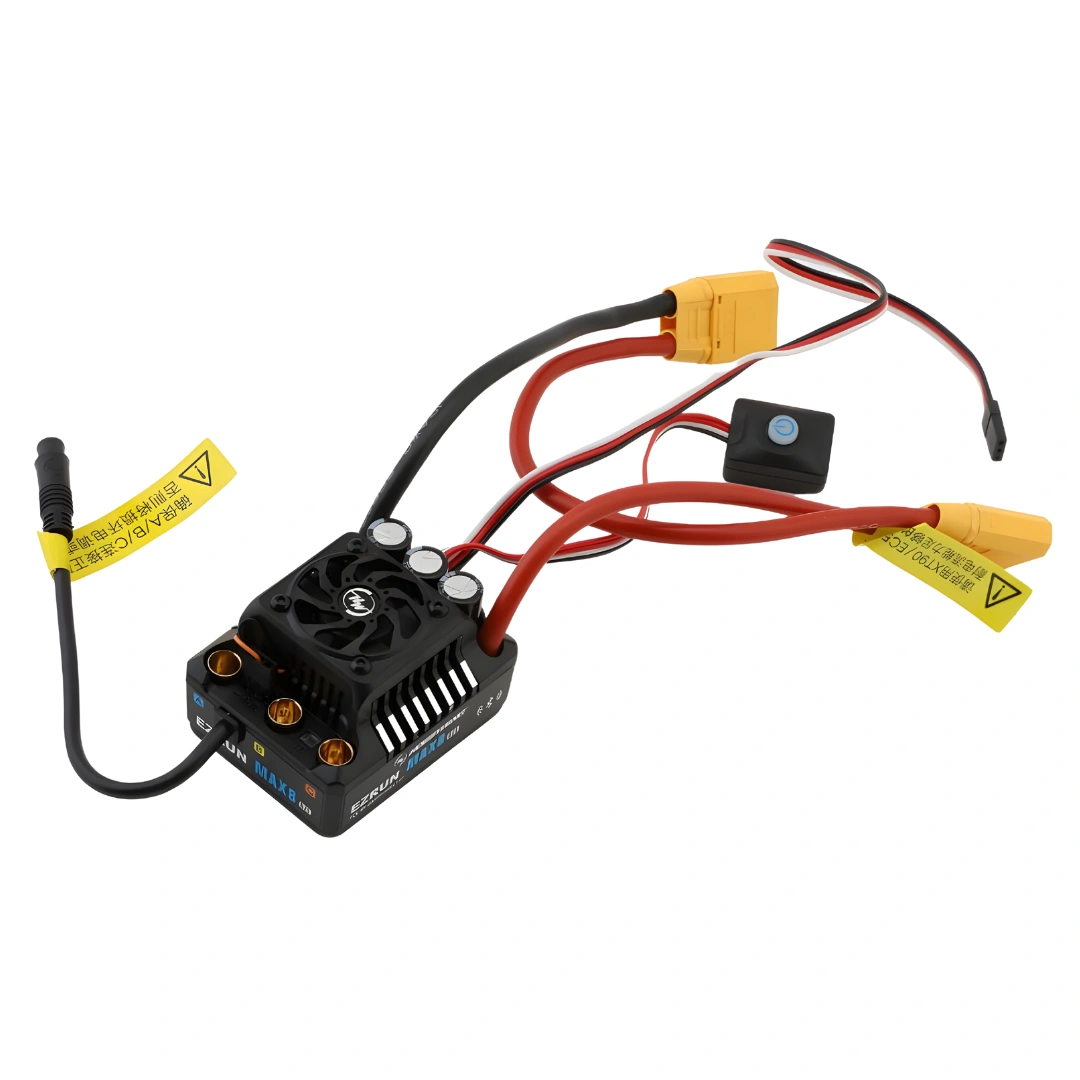

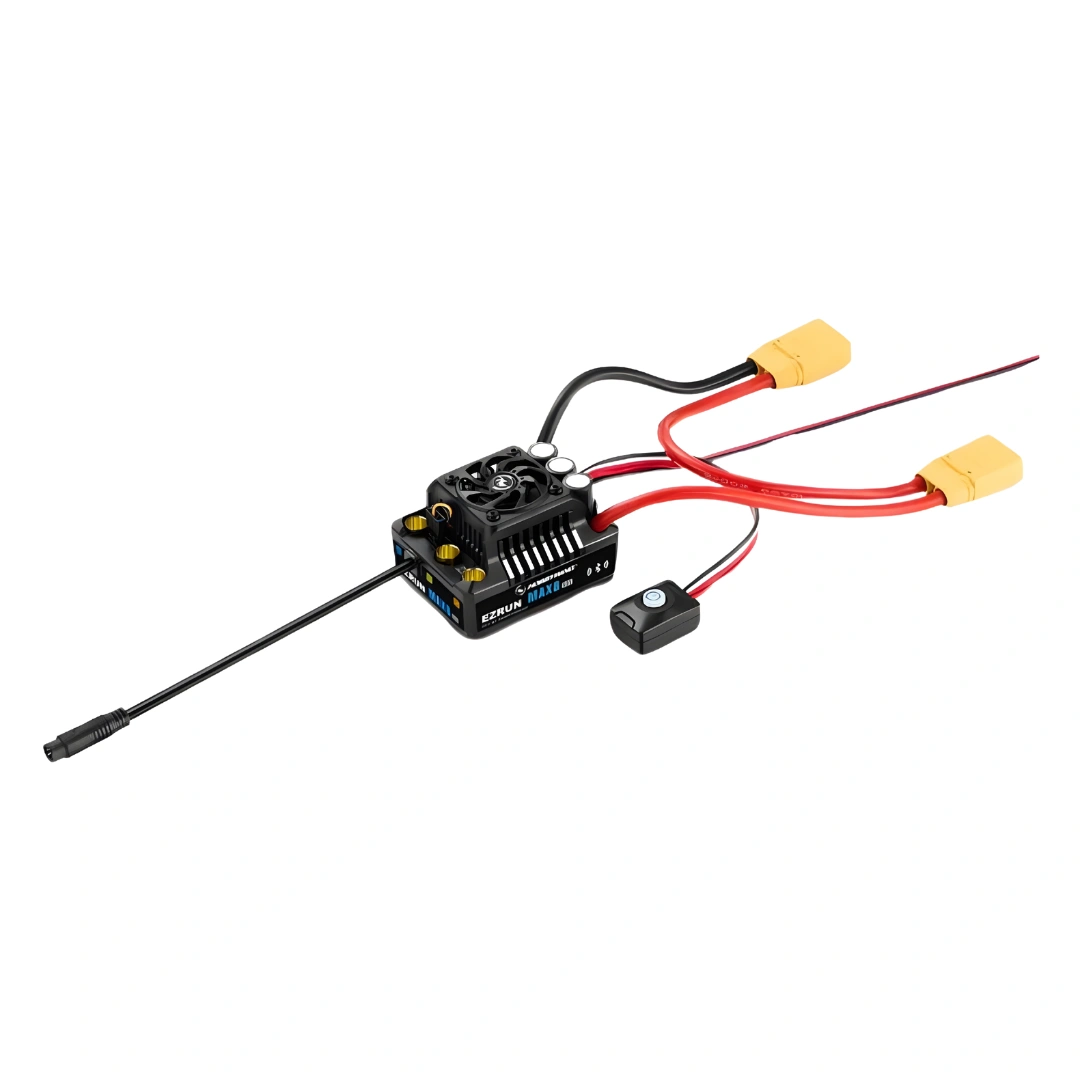

EZRun Max8 G2s Brushless ESC. The ESC features three built-in 680uF capacitors, enhancing performance by 74% (870uF) compared to the MAX8 ESC. These large capacitors eliminate the need for external capacitors on your vehicle. It also includes a patented frameless fan design, which rapidly transfers internal heat to the integrated housing radiator. High airflow from the fan's side and a copper thermal conduction sink on the internal power plate ensure efficient cooling. This design maintains the ESC's reliability and optimal thermal condition.

Features

• Enhanced waterproof and dust-proof design for various climates.

• Built-in 6A/15A switch mode BEC, supports 6V/7.4V/8.4V servos.

• Advanced electronic switches prevent dust, humidity, and impact issues.

• 32-degree turbo timing increases RPM by 25% with compatible motors.

• Real-time data logging and firmware updates via HW LINK app and Bluetooth.

Specifications

• Scale: 1:8 Scale

• Type: Brushless Sensored

• Input Voltage: 4S-6S Lipo

• BEC Voltage: 6-8.4V

• Motor Limit:

• 4S 3000kV

• 6S 2400kV

• Programmable: Yes

• Dimensions: 60x48x40.5mm

• Weight: 6.84oz (194g)

Includes

• (1) EZRun Max8 G2s Brushless ESC
